    When posting the above about making up the vacuum pipe I completely forgot to mention the making of the pipe elbows.

    In the past I have used a square file to file a V groove in some tube and then created the bend. This time I thought that I would have a go at doing it with the mill

    I set a collet block at 45 degrees using a set square and then used a 3mm end mill to cut the slot.







    jakesdad13, gormo and Jim Freight like this.
  2. Jim Freight

    Jim Freight Full Member

    Messages:
    694
    Likes Received:
    589
    Joined:
    Sep 9, 2019
    :faint:

    What can I say ... you are certainly opening my eyes to what can be done with these mills, a collet block looks like a very useful accessory.

    Jim :)

  3. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    Hi Jim,

    They are, if you buy 'one' I would suggest getting both square and Hexagonal versions that way you can mill nuts and bolts to your hearts content.

    I got mine from Arc Euro and you have to buy the nut as a separate Item. I already have a couple of nuts so I just bought the one which I swap between the two blocks as and when I use them.

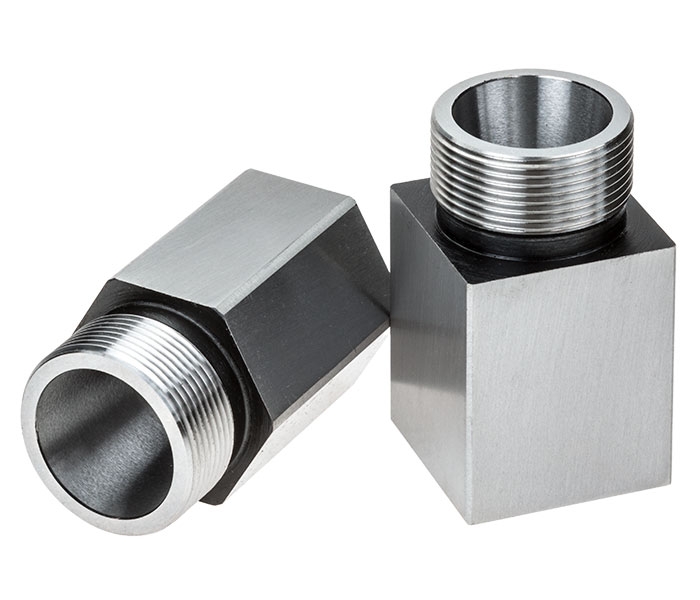

    [​IMG]

    https://www.arceurotrade.co.uk/Catalogue/Collets/ER-Collet-Fixtures/Stevensons-ER25-Collet-Blocks

    No connection with Arc Euro just a satisfied customer. When looking for specialist bits for machine tools I tend to check prices on ARC, RDG and Warco to see who is offering the best deal at the time.

    I do buy the odd item via eBay but I am conscious that if you are not careful you may end up with import duties when buying from China or India for exactly the same stuff as you are getting from ARC etc. as pretty much everything is produced in China or India these days.

    I must confess that whenever I need to make anything these days, my first thought is can it be done by lathe or mill.

    jakesdad13 likes this.
  4. Jim Freight

    Jim Freight Full Member

    Messages:
    694
    Likes Received:
    589
    Joined:
    Sep 9, 2019
    Thanks Rob, I tend to find Arc Euro reasonably priced, I have bought both my micro lathe and mill from them and a number of accessories too.

    Rob Pulham likes this.
  5. ianvolvo46

    ianvolvo46 Staff Member Moderator

    Messages:
    5,129
    Likes Received:
    1,397
    Joined:
    Dec 8, 2015

    :faint::faint::tophat::tophat:

  6. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    After resolving the Injectors pipe work so that I could indeed fit the wheels I realised that I didn't have a brake cylinder for the loco.


    A look at the GA revealed that the J6 actually had two 18" brake cylinders side by side.

    A couple of hours later I had knocked a pair up from brass rod.




    Wot no 5P, I completely forgot it when taking the photos....

  7. Mossy

    Mossy A classic grump Yorkshire man Full Member

    Messages:
    808
    Likes Received:
    1,221
    Joined:
    Sep 8, 2020
    I reckon like any good yorkshire man, he passed that oversized 5p he used for photos as a 10p in the local shop, :avatar:

    Rob Pulham likes this.
  8. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    Then the world turned black.

    I had initially primed the tender body a couple of weeks ago when the sun last shone. I took the opportunity of sun here in the dales to get the body primed yesterday afternoon.

    I am greatly impressed with the finish of the Clostermans etch Primer. I have used it and the cellulose top coat before but only on loco chassis and you don't really get the same effect.

    It's also an absolute b***r to light properly for decent photos.

    These are my third attempt.

    Gladiator J6 Loco Body Primed 1.jpg

    Gladiator J6 Loco Body Primed 2.jpg

    Gladiator J6 Loco Body Primed.jpg

    Gladiator J6 Tender Body Primed 2.jpg

    Gladiator J6 Tender Body Primed.jpg


    Last edited: Apr 4, 2022
  9. Mossy

    Mossy A classic grump Yorkshire man Full Member

    Messages:
    808
    Likes Received:
    1,221
    Joined:
    Sep 8, 2020
    Rob,

    Superb, but a question. I seem to recall you saying you were concentrating on the Princess for the loco build competition, painting J6's doesn't have anything to do with a Princess, unless I am just a fool!

  10. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    No not a fool, you are correct. But I needed some thought time on the cylinders for the Princess and this does need finishing so I moved this along as well.

  11. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    The sun shone again over Wensleydale this morning so I took the advantage to get the top coat of cellulose on the J6.

    This is without doubt the best results that I have ever had from rattle can paints.

    Gladiator J6 Top coat on 1.jpg

    Gladiator J6 Top coat on.jpg

  12. Jim Freight

    Jim Freight Full Member

    Messages:
    694
    Likes Received:
    589
    Joined:
    Sep 9, 2019
    I find final spraying on my buildings nerve wracking enough, knowing it can destroy the look of hours of work if it goes wrong, but spraying on sheet metal and getting a good finish, well that's a step too far for me, but you certainly seemed to have achieved an excellent finish, great achievement Rob, Jim :thumbs: :tophat:

    Rob Pulham likes this.
  13. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    As I mentioned in the Princess Build thread in between punching out rivets which is a little tedious to say the least I have also done a bit more on the brakes for the J6

    The brake hangars are single layer etches and being an older hand drawn kit the holes are a bit on the big side for lengths of wire. I also wanted to make the brakes removable so I turned up some hangar brackets cum spacers.


    These are soldered to the chassis and the brakes hang off them. IMG_0716.JPG

    This meant temporarily re fitting the wheel, and spring hangars (so that the axles didn't keep falling out.


    Which allowed me to make up the brakes and have them removable. The GA drawing shows that there were turnbuckle type adjusters at the cab end so I knocked a couple up on the mill.

    I also fitted the brake cylinders which requited yet another frame spacer to be milled out.... That seems to be a theme at the minute.

    gormo, Vinylelpea and Jim Freight like this.
  14. Mossy

    Mossy A classic grump Yorkshire man Full Member

    Messages:
    808
    Likes Received:
    1,221
    Joined:
    Sep 8, 2020
    I see you have found that oversized six pence piece you use in photographs! :avatar:

    Rob Pulham likes this.
  15. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    While working on the brakes I made a small discovery which made things a bit awkward. When rebuilding the springs and dampers from the original Ragstone castings I had set the dampers much too low under the springs. That combined with them being slightly over size and a few of them not quite being round meant that when testing the wheels rubbed on them and the brake pull rods wouldn't seat properly.

    An easy fix I thought. I will turn up some slightly smaller dampers which will be round and it should be an easy job to pop the dampers off and reseat the replacements flush under the springs.

    Oh no when I tried to get the dampers off I ended up pulling the whole thing apart


    Replacements duly turned I also decided to add the quite prominent nuts on the bottom


    I decided it would be easier to just assemble the dampers onto some new pins and then fit them to the springs and hangers



    jakesdad13 and Vinylelpea like this.
  16. Jim Freight

    Jim Freight Full Member

    Messages:
    694
    Likes Received:
    589
    Joined:
    Sep 9, 2019
    So with some unexpected rework, better than before :scratchchin:

    Rob Pulham likes this.
  17. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    Most definitely, back when I did these originally, I did have a lathe but I wasn't very proficient with it. I seriously doubt that I could have made one of them to a definite size, let alone the dozen which I needed.

    Jim Freight likes this.
  18. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    During the week in between other things I got the rest of the dampers refitted to the springs and then tried the brakes again. A much better fit.




    J6 Chassis 1.jpg

    I still need to sort out the cross rod and the levers to the brake cylinders.

    Jim Freight likes this.
  19. Jim Freight

    Jim Freight Full Member

    Messages:
    694
    Likes Received:
    589
    Joined:
    Sep 9, 2019
    A change of model is as good as a rest to the modelling addict :avatar:

    Rob Pulham likes this.
  20. Rob Pulham

    Rob Pulham Happily making models Staff Member Administrator Feature Contributor

    Messages:
    3,268
    Likes Received:
    3,291
    Joined:
    Sep 15, 2017
    This last week also saw the transfers applied to the J6 a Job I always dread...

    Not the best photos in the world but you get the idea.
    Gladiator J6 - 1.jpg

    Gladiator J6 - 4.jpg

    Gladiator J6.jpg

    I also got some paint on the plates and the buffer beams
    Painted plates.png

    The loco is to be weathered so I wasn't too fussed that the cover of the white on the numerals isn't perfect.

    Jim Freight and Vinylelpea like this.
